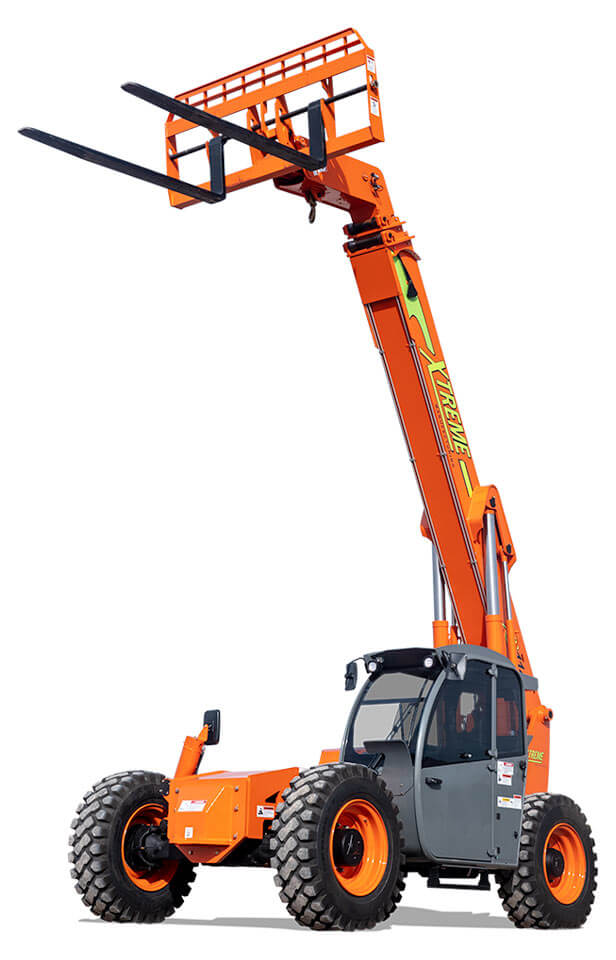

XR944

  • 4,082kg Capacity
  • 13.41m Lift Height
  • 8.8m Forward Reach
  • 74 hp HT (Tier 4F) Engine

The ideal balance of reach, height, capacity, and maneuverability.

  • 360° operator visibility
  • Ductile steel manifold
  • Suspension seat
  • Easy cab mounted grab handles
  • Easy service access
  • Master disconnect switch
  • Protected tilt & extend cylinders
  • Boom lift point
  • Steel hydraulic & fuel tanks
  • Manual lowering valve (cylinders)
  • Long life Lexan labels
  • Large cross section boom
  • Heavy duty boom chains
  • Easy tie downs
  • Suspended pedals
  • Heavy duty pre-cleaner
  • Large capacity fuel tank
  • Additional high pressure hydraulic filter
  • Trunnion mounted sway cylinders
  • Individual gauges/switches
  • Melonite pins
  • Steel hood
  • Standard auxiliary hydraulics
  • Solid steel plate chassis
  • Steel dash
  • Rear axle stabilization (RAS)
  • Center mounted powertrain
  • Back up alarm with light
  • Long life boom rollers
  • Dual batteries
  • Cab step
  • Limited slip front axle
  • Electrical aux hydraulic control
Capacity Weight

4,082kg

Lift Height

13.41m

Forward Reach

8.8m

Frame Leveling L/R

11°

Machine Weight

13,022kg

Engine

74 hp HT (Tier 4F)

Axle

ZF MST3055 / 3060

Transmission

ZF 3WG94

Fuel Capacity

189L

Tires

Foam Filled 15.5 x 25

Hydraulic Flow (per min)

185.4L

Hydraulic Pressure

241.3bar

Hydraulic Oil Capacity

234.6L

Length to Fork Face

6.4m

Width

2.56m

Height

2.43m

Wheel Base

3.18m

Ground Clearance

419mm

Turning Radius

3.65m

Options

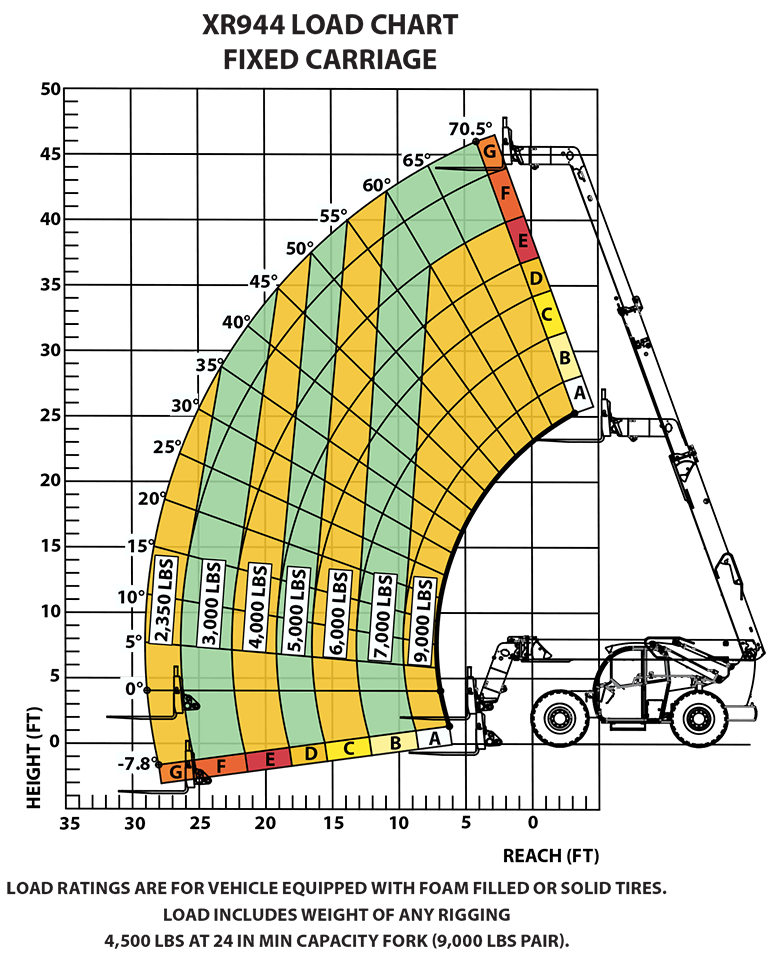

Load Chart

All Xtreme products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Xtreme products, we offer the industry-leading 10-5-2 warranty on all Xtreme telehandlers:

Ahern Chile is authorized to carry our Xtreme warranty repairs. For further details, please visit our warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
