XR734-A

  • 3,175kg Capacity
  • 10.36m Max Lift Height
  • 6.55m Forward Reach
  • 74 hp (Tier 4F) Engine
  • 360° operator visibility
  • Ductile steel manifold
  • Suspension seat
  • Easy cab mounted grab handles
  • Easy service access
  • Master disconnect switch
  • Protected tilt & extend cylinders
  • Boom lift point
  • Steel hydraulic & fuel tanks
  • Manual lowering valve (cylinders)
  • Long life Lexan labels
  • Large cross section boom
  • Heavy duty boom chains
  • Easy tie downs
  • Suspended pedals
  • Heavy duty pre-cleaner
  • Large capacity fuel tank
  • Additional high pressure hydraulic filter
  • Trunnion mounted sway cylinders
  • Individual gauges/switches
  • Melonite pins
  • Steel hood
  • Standard auxiliary hydraulics
  • Solid steel plate chassis
  • Steel dash
  • Rear axle stabilization (RAS)
  • Center mounted powertrain
  • Back up alarm with light
  • Long life boom rollers
  • Dual batteries
  • Cab step
  • Limited slip front axle
  • Electrical aux hydraulic control
Capacity Weight

3,175kg

Lift Height

10.36m

Forward Reach

6.55m

Frame Leveling L/R

Machine Weight

7,257kg

Engine

74 hp (Tier 4F)

Axle

Comer 128

Transmission

Dana Powershift

Fuel Capacity

98.4L

Tires

foam filled 15.5-625

Hydraulic Flow (per min)

98.4L

Hydraulic Pressure

241.3bar

Hydraulic Oil Capacity

189.2L

Length to Fork Face

5.79m

Width

2.26m

Height

2.44m

Wheel Base

2.9m

Ground Clearance

381mm

Turning Radius

3.35m

Options

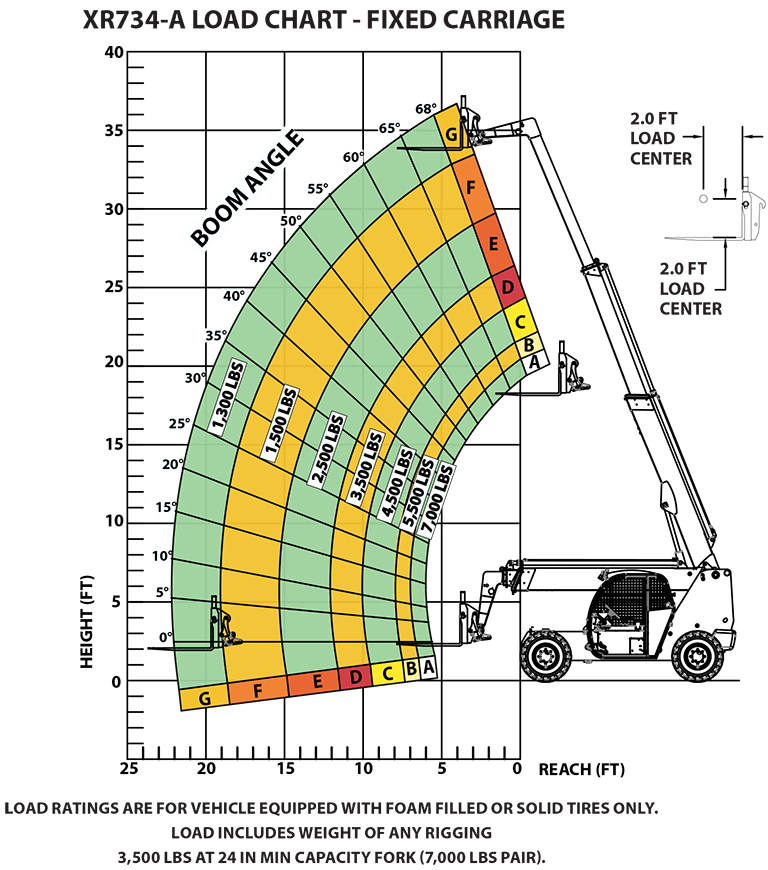

Load Chart

XR734-A Load Chart

All Xtreme products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Xtreme products, we offer the industry-leading 10-5-2 warranty on all Xtreme telehandlers:

Ahern Chile is authorized to carry our Xtreme warranty repairs. For further details, please visit our warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
