- 360° operator visibility
- Ductile steel manifold
- Suspension seat
- Easy cab mounted grab handles
- Easy service access
- Master disconnect switch
- Protected tilt & extend cylinders
- Boom lift point
- Steel hydraulic & fuel tanks
- Manual lowering valve (cylinders)
- Long life Lexan labels
- Large cross section boom
- Suspended pedals
- Easy tie downs
- Large capacity fuel tank
- ˝Y˝ frame handle
- Trunnion mounted sway cylinders
- Heavy duty pre-cleaner
- Melonite pins
- Additional high pressure hydraulic filter
- Standard auxiliary hydraulics
- Steel hood
- Steel dash
- Solid steel plate chassis
- Center mounted powertrain
- Rear axle stabilization (RAS)
- Long life boom rollers
- Back up alarm with light
- Dual batteries
- Cab step

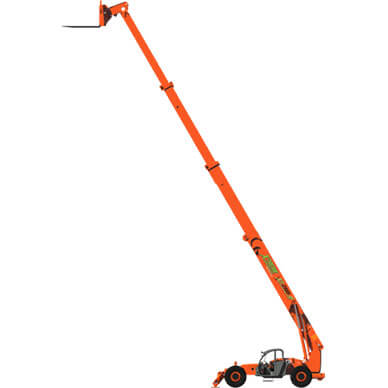

XR2585-D
Capacity Weight | 11,339kg |
---|---|
Lift Height | 25.9m |
Forward Reach | 16.86m |
Frame Leveling L/R | 8° |
Machine Weight | 37,194kg |
Engine | Cummins 6.7L 250 hp (Tier 4F) |
Axle | Kessler 91.8938.3 |
Transmission | Dana T32000 |
Fuel Capacity | 378 L |
Tires | Foam Filled 23.5 R25 |
Hydraulic Flow (per min) | 185.4L |
Hydraulic Pressure | 275.8bar |
Hydraulic Oil Capacity | 378L |
Length to Fork Face | 11.13m |
Width | 2.99m |
Height | 2.99m |
Wheel Base | 4.26m |
Ground Clearance | 457mm |
Turning Radius | 7.01m |
Options
Cab Options
Options
Carriages
Fork Tines
Tires
Xtreme OnSite™ Telematics
Attachments

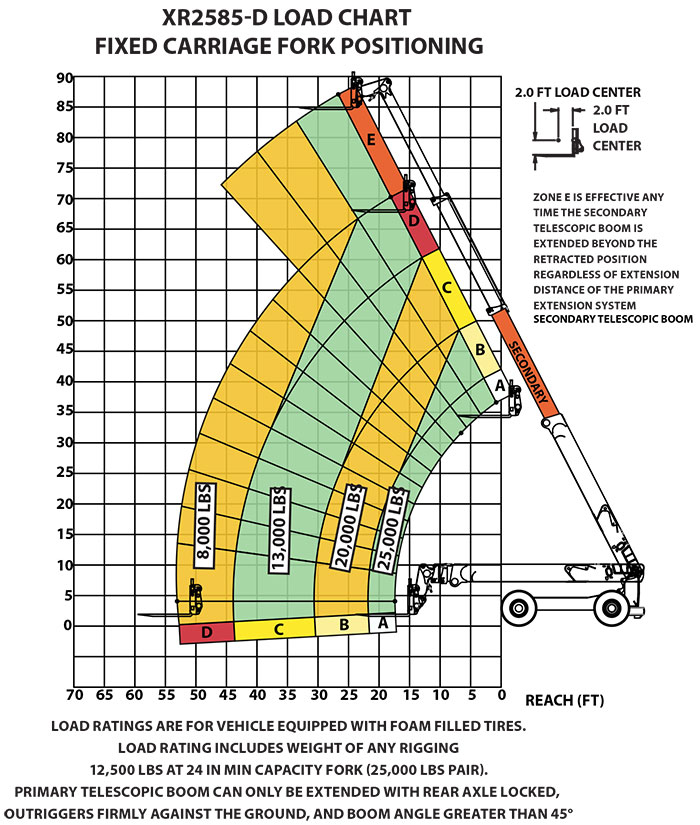

Load Chart
All Xtreme products are built to the highest standards and we carry out rigorous quality checks at every stage of production.
To ensure our customers have peace of mind in purchasing Xtreme products, we offer the industry-leading 10-5-2 warranty on all Xtreme telehandlers:
Ahern Chile is authorized to carry our Xtreme warranty repairs. For further details, please visit our warranty page.
Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
