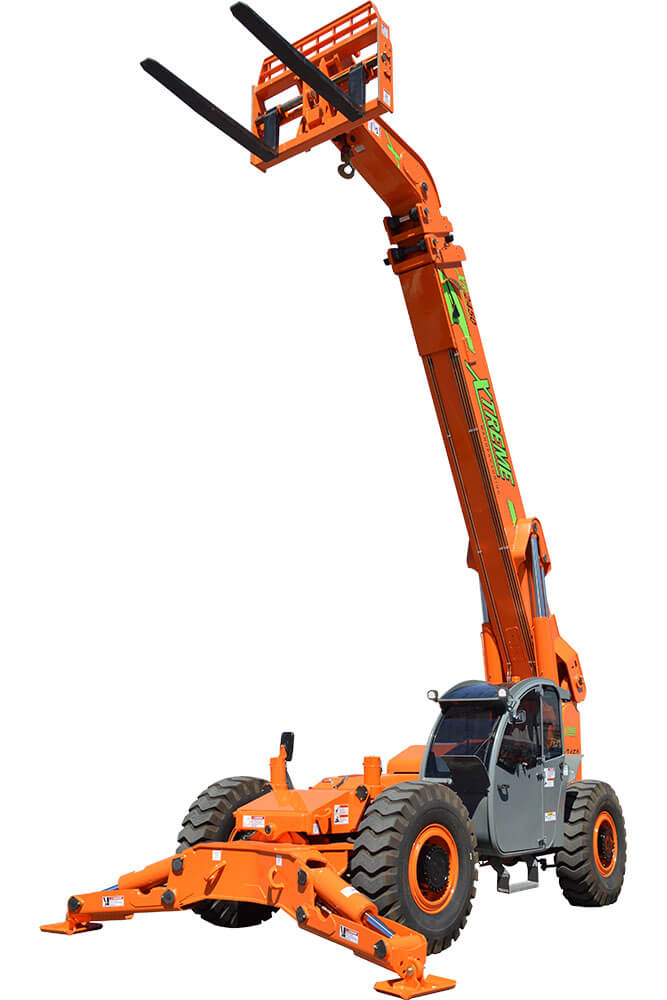

XR2450-D

  • 10,886kg Capacity
  • 15.24m Lift Height
  • 10.97m Forward Reach
  • 173 hp (Tier 4F) Engine

The XR2450 provides a substantial 10,886kg capacity, ideal for large scale infrastructure and construction projects.

  • 360° operator visibility
  • Ductile steel manifold
  • Suspension seat
  • Easy cab mounted grab handles
  • Easy service access
  • Master disconnect switch
  • Protected tilt & extend cylinders
  • Boom lift point
  • Steel hydraulic & fuel tanks
  • Manual lowering valve (cylinders)
  • Long life Lexan labels
  • Large cross section boom
  • Suspended pedals
  • Easy tie downs
  • Heavy duty boom chains
  • ˝Y˝ frame handle
  • Large capacity fuel tank
  • Heavy duty pre-cleaner
  • Trunnion mounted sway cylinders
  • Additional high pressure hydraulic filter
  • Melonite pins
  • Steel hood
  • Standard auxiliary hydraulics
  • Solid steel plate chassis
  • Steel dash
  • Rear axle stabilization (RAS)
  • Center mounted powertrain
  • Wider outrigger stance
  • Long life boom rollers
  • Back up alarm with light
  • Dual batteries
  • Cab step
Capacity Weight

10,886kg

Lift Height

15.24m

Forward Reach

10.97m

Frame Leveling L/R

Machine Weight

25,655kg

Engine

Cummins 4.5L 173 hp (Tier 4F)

Axle

Kessler 82.8416.3

Transmission

Dana T14

Fuel Capacity

272.5L

Tires

Foam Filled 16.00 x 25 – 28

Hydraulic Flow (per min)

185.4L

Hydraulic Pressure

296.4bar

Hydraulic Oil Capacity

219.5L

Length to Fork Face

8.53m

Width

2.59m

Height

2.89m

Wheel Base

3.75m

Ground Clearance

381mm

Turning Radius

5.08m

Options







Load Chart

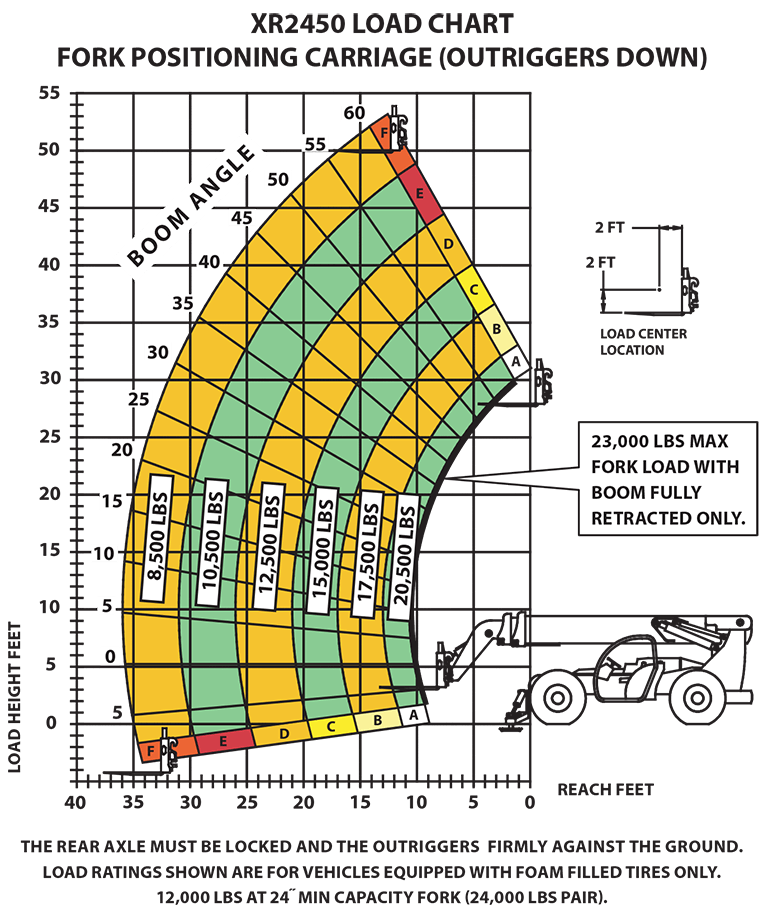

XR2450-D Load Chart

All Xtreme products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Xtreme products, we offer the industry-leading 10-5-2 warranty on all Xtreme telehandlers:

Ahern Chile is authorized to carry our Xtreme warranty repairs. For further details, please visit our warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
