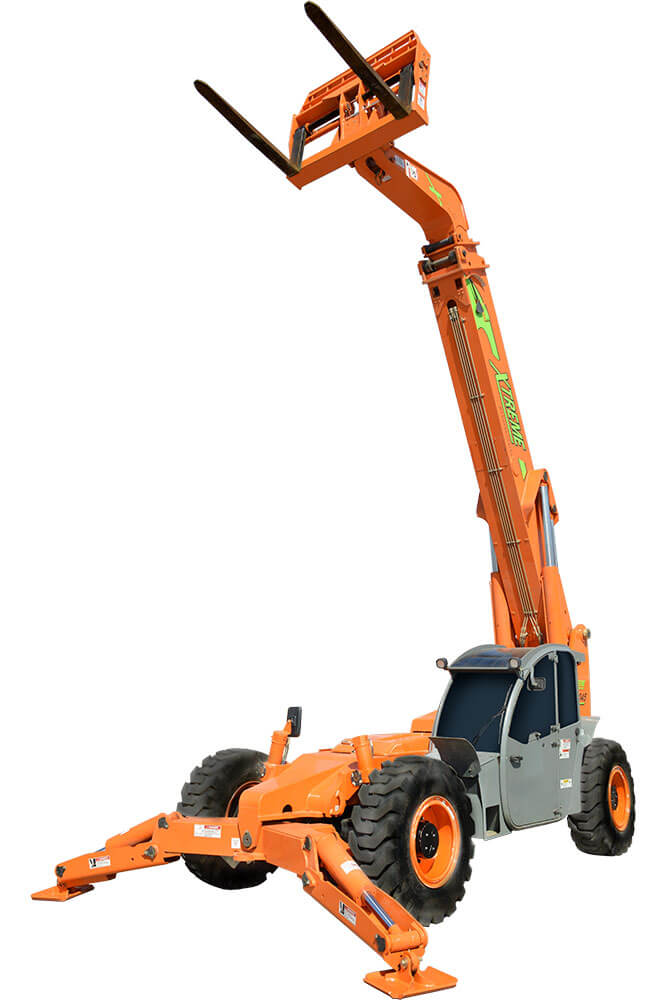

XR2045-C

  • 9,072kg Capacity
  • 13.71m Lift Height
  • 8.33m Forward Reach
  • 134 hp (Tier 4F) Engine

Increased capacity, while still maintaining excellent jobsite maneuverability.

  • 360° operator visibility
  • Ductile steel manifold
  • Suspension seat
  • Easy cab mounted grab handles
  • Easy service access
  • Master disconnect switch
  • Protected tilt & extend cylinders
  • Boom lift point
  • Steel hydraulic & fuel tanks
  • Manual lowering valve (cylinders)
  • Long life Lexan labels
  • Large cross section boom
  • Suspended pedals
  • Easy tie downs
  • Heavy duty boom chains
  • ˝Y˝ frame handle
  • Large capacity fuel tank
  • Heavy duty pre-cleaner
  • Trunnion mounted sway cylinders
  • Additional high pressure hydraulic filter
  • Melonite pins
  • Steel hood
  • Standard auxiliary hydraulics
  • Solid steel plate chassis
  • Steel dash
  • Rear axle stabilization (RAS)
  • Center mounted powertrain
  • Wider outrigger stance
  • Long life boom rollers
  • Back up alarm with light
  • Dual batteries
  • Cab step
  • Electrical aux hydraulic control
Capacity Weight

9,072kg

Lift Height

13.71m

Forward Reach

8.33m

Frame Leveling L/R

Machine Weight

21,000kg

Engine

Deutz 3.6L 134 hp (Tier 4F)

Axle

Dana 213

Transmission

Dana T20000

Fuel Capacity

272.5L

Tires

Foam Filled 17.5 x 25

Hydraulic Flow (per min)

185.4L

Hydraulic Pressure

275.7bar

Hydraulic Oil Capacity

219.5L

Length to Fork Face

6.85m

Width

2.59m

Height

2.71m

Wheel Base

3.73m

Ground Clearance

381mm

Turning Radius

4.82m

Options






Load Chart

XR2045-C Load Chart

All Xtreme products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Xtreme products, we offer the industry-leading 10-5-2 warranty on all Xtreme telehandlers:

Ahern Chile is authorized to carry our Xtreme warranty repairs. For further details, please visit our warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
