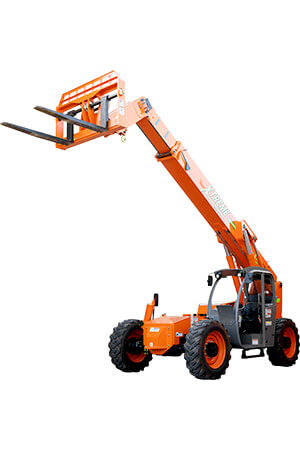

XR1734-C

  • 7,711kg Capacity
  • 10.36m Max Lift Height
  • 5.18m Forward Reach
  • 120 hp (Tier 4F) Engine
  • 360° operator visibility
  • Ductile steel manifold
  • Suspension seat
  • Easy cab mounted grab handles
  • Easy service access
  • Master disconnect switch
  • Protected tilt & extend cylinders
  • Boom lift point
  • Steel hydraulic & fuel tanks
  • Manual lowering valve (cylinders)
  • Long life Lexan labels
  • Large cross section boom
  • Heavy duty boom chains
  • Easy tie downs
  • Suspended pedals
  • ˝Y˝ frame handle
  • Large capacity fuel tank
  • Heavy duty pre-cleaner
  • Trunnion mounted sway cylinders
  • Additional high pressure hydraulic filter
  • Melonite pins
  • Individual gauges/switches
  • Standard auxiliary hydraulics
  • Steel hood
  • Steel dash
  • Solid steel plate chassis
  • Center mounted powertrain
  • Rear axle stabilization (RAS)
  • Long life boom rollers
  • No outriggers
  • Dual batteries
  • Back up alarm with light
  • Cab step
  • Electrical aux hydraulic control
Capacity Weight

7,711kg

Lift Height

10.36m

Forward Reach

5.18m

Frame Leveling L/R

11°

Machine Weight

15,131kg

Engine

Cummins 3.8L 120 hp (Tier 4F)

Axle

Dana 213

Transmission

Dana T20000

Fuel Capacity

189.2L

Tires

Foam Filled 15.5 x 25

Hydraulic Flow (per min)

185.4L

Hydraulic Pressure

262bar

Hydraulic Oil Capacity

235L

Length to Fork Face

6.70m

Width

2.56m

Height

2.46m

Wheel Base

3.17m

Ground Clearance

419mm

Turning Radius

3.65m

Options







Load Chart

Xtreme XR1734-C

All Xtreme products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Xtreme products, we offer the industry-leading 10-5-2 warranty on all Xtreme telehandlers:

Ahern Chile is authorized to carry our Xtreme warranty repairs. For further details, please visit our warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
