XR1547-C

  • 6,804kg Capacity
  • 14.3m Max Lift Height
  • 9.6m Forward Reach
  • 120 hp (Tier 4F) Engine
  • 360° operator visibility
  • Ductile steel manifold
  • Suspension seat
  • Easy cab mounted grab handles
  • Easy service access
  • Master disconnect switch
  • Protected tilt & extend cylinders
  • Boom lift point
  • Steel hydraulic & fuel tanks
  • Manual lowering valve (cylinders)
  • Long life Lexan labels
  • Large cross section boom
  • Heavy duty boom chains
  • Easy tie downs
  • Suspended pedals
  • ˝Y˝ frame handle
  • Large capacity fuel tank
  • Heavy duty pre-cleaner
  • Trunnion mounted sway cylinders
  • Additional high pressure hydraulic filter
  • Melonite pins
  • Individual gauges/switches
  • Standard auxiliary hydraulics
  • Steel hood
  • Steel dash
  • Solid steel plate chassis
  • Center mounted powertrain
  • Rear axle stabilization (RAS)
  • Long life boom rollers
  • Wider outrigger stance
  • Dual batteries
  • Back up alarm with light
  • Cab step
  • Electrical aux hydraulic control
Capacity Weight

6,804kg

Lift Height

14.3m

Forward Reach

9.6m

Frame Leveling L/R

11°

Machine Weight

16,692kg

Engine

Cummins 3.8L 120 hp (Tier 4F)

Axle

Dana 213

Transmission

Dana T20000

Fuel Capacity

189.2L

Tires

Foam Filled 15.5 x 25

Hydraulic Flow (per min)

185.4L

Hydraulic Pressure

241.3bar

Hydraulic Oil Capacity

234.7L

Length to Fork Face

6.47m

Width

2.56m

Height

2.46m

Wheel Base

3.18m

Ground Clearance

419mm

Turning Radius

3.66m

Options

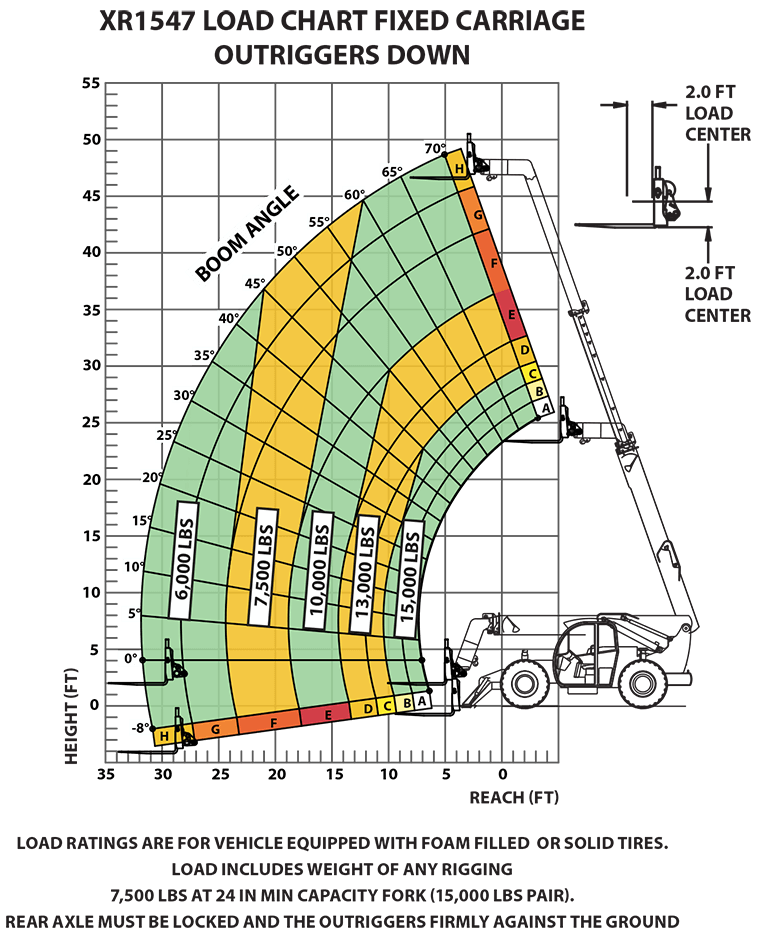

Load Chart

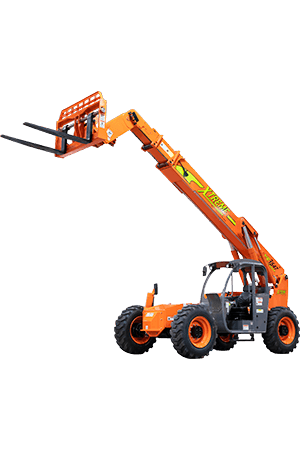

Xtreme XR1547-C

All Xtreme products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Xtreme products, we offer the industry-leading 10-5-2 warranty on all Xtreme telehandlers:

Ahern Chile is authorized to carry our Xtreme warranty repairs. For further details, please visit our warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
