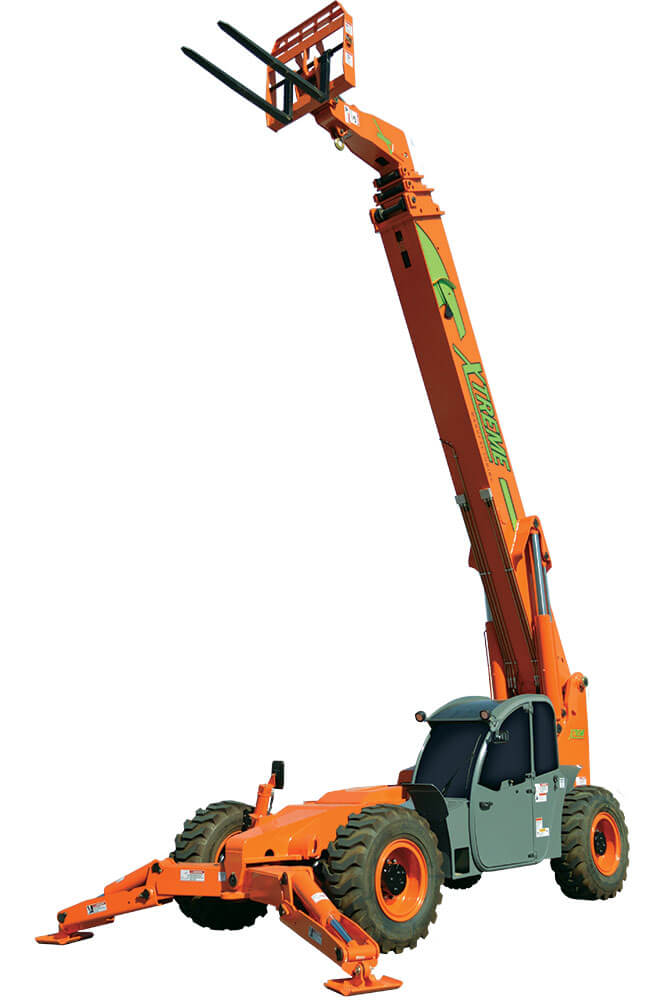

XR1055

  • 4,536kg Capacity
  • 16.76m Lift Height
  • 11.9m Forward Reach
  • 74 hp HT (Tier 4F) Engine

The ideal balance of reach, height, capacity, and maneuverability.

  • 360° operator visibility
  • Ductile steel manifold
  • Suspension seat
  • Easy cab mounted grab handles
  • Easy service access
  • Master disconnect switch
  • Protected tilt & extend cylinders
  • Boom lift point
  • Steel hydraulic & fuel tanks
  • Manual lowering valve (cylinders)
  • Long life Lexan labels
  • Large cross section boom
  • Heavy duty boom chains
  • Easy tie downs
  • Suspended pedals
  • Heavy duty pre-cleaner
  • Large capacity fuel tank
  • Additional high pressure hydraulic filter
  • Trunnion mounted sway cylinders
  • Steel hood
  • Melonite pins
  • Solid steel plate chassis
  • Standard auxiliary hydraulics
  • Rear axle stabilization (RAS)
  • Steel dash
  • Wider outrigger stance
  • Center mounted powertrain
  • Back up alarm with light
  • Long life boom rollers
  • Limited slip front axle
  • Dual batteries
  • Cab step
Capacity Weight

4,536kg

Lift Height

16.76m

Forward Reach

11.9m

Frame Leveling L/R

11°

Machine Weight

15,694kg

Engine

Cummins 3.8L 74 hp (Tier 4F)

Axle

ZF MST3055 / 3060

Transmission

ZF 3WG94

Fuel Capacity

189.2L

Tires

Foam Filled 15.5 x 25

Hydraulic Flow (per min)

185.4L

Hydraulic Pressure

241.3bar

Hydraulic Oil Capacity

234.7L

Length to Fork Face

6.5m

Width

2.56m

Height

2.66m

Wheel Base

3.17m

Ground Clearance

450mm

Turning Radius

3.65m

Class Carriage

B

Options

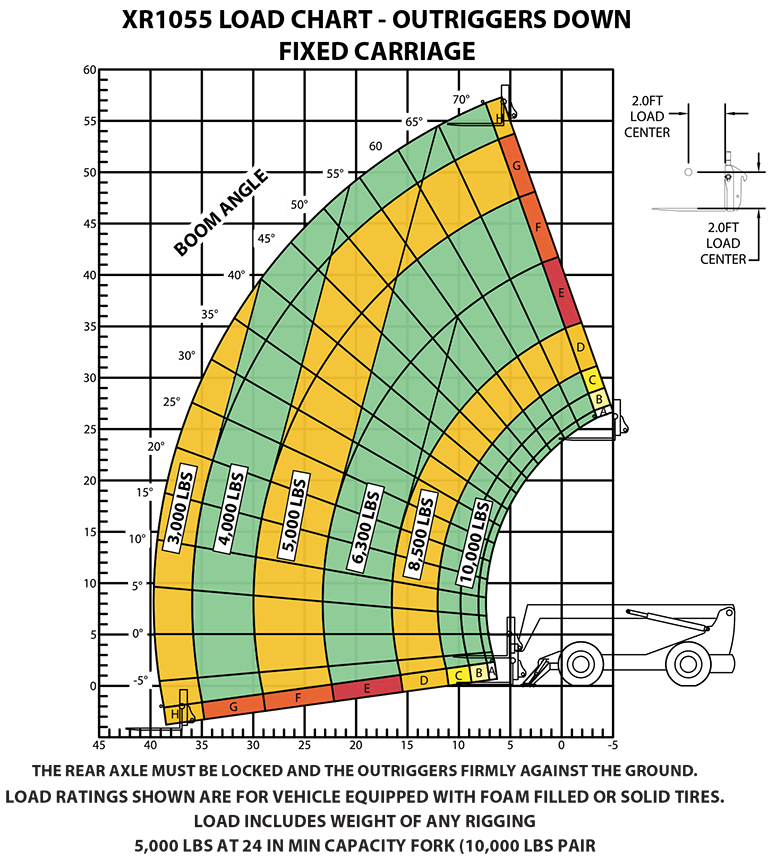

Load Chart

All Xtreme products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Xtreme products, we offer the industry-leading 10-5-2 warranty on all Xtreme telehandlers:

Ahern Chile is authorized to carry our Xtreme warranty repairs. For further details, please visit our warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
