UL40

  • Max. working height: 14.1m
  • Overall width: 0.74m
  • Platform capacity (SWL): 136kg
  • Weight(AC): 470kg

Download Specifications (PDF)

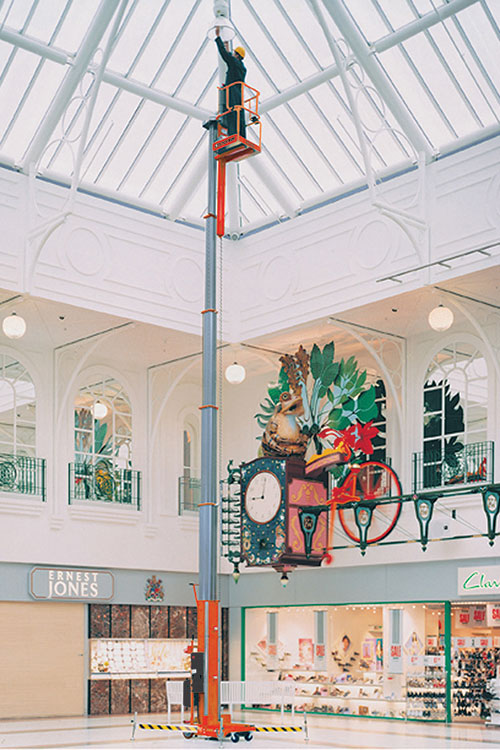

The Snorkel UL40 is the largest personnel lift in the range. This robust push-around mast lift, safely lifts one person plus tools to a working height of 14.1m. The lift can be easily pushed into position, and can pass through standard doorways thanks to its innovative tilt-back system. The patented ‘Girder Lock’ telescopic mast design provides a very stable platform, even at full elevation. The UL40 is ideal for interior maintenance, particularly in sports hall, auditoriums, atriums and shopping malls.

Standard Features

  • Patented girder lock telescopic mast system
  • Integrated tilt-back system
  • Ground level entry
  • EZ Loader system for transport
  • Outrigger interlock indicators
  • Integrated battery charger (DC only)
  • Non-marking wheels & casters
  • 2 year parts & labor, 5 year structural warranty
Max Working Height

14.1m

Max Platform Height

12.1m

Platform Length

0.56m

Platform Width

0.66m

Outrigger Footprint

2.95m x 2.85m

Overall Width

0.74m

Overall Length

1.32m

Stowed Height

2.9m

Tilt Back Height

2.0m

Tilt Back Length

2.99m

Platform Capacity (SWL)

136kg

Max Wind Speed

0m/s

Raise/Lower Time

60/40 seconds

Wheels

250mm x 64mm rear, 150mm casters front

Controls

push button

Wall Access

736mm

Power Source (AC)

120/220V AC 50HZ

Power Source (DC)

1 X 12V 105Ah battery

Weight (AC)

470kg

Weight (DC)

500kg

Options

  • Special paint colors
  • Tool tray
  • Laser locator
  • Environmental hydraulic oil

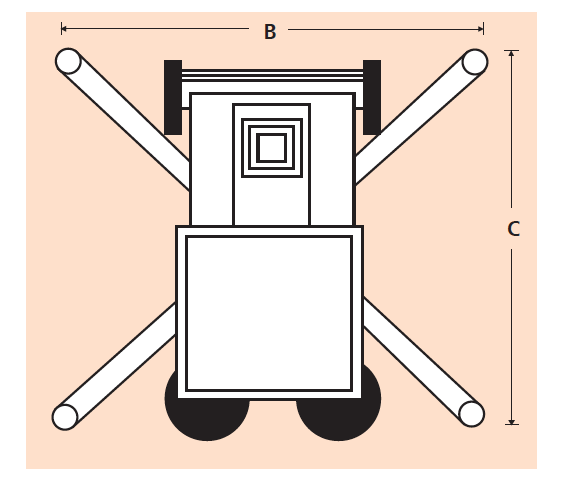

Outrigger Footprint

UL Series outrigger footprint

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Chile is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
