TL49J

  • Max. working height: 16.7m
  • Platform capacity (SWL): 200kg
  • Stowed Height: 2.16m
  • Weight: 2,389kg

Download Specifications (PDF)

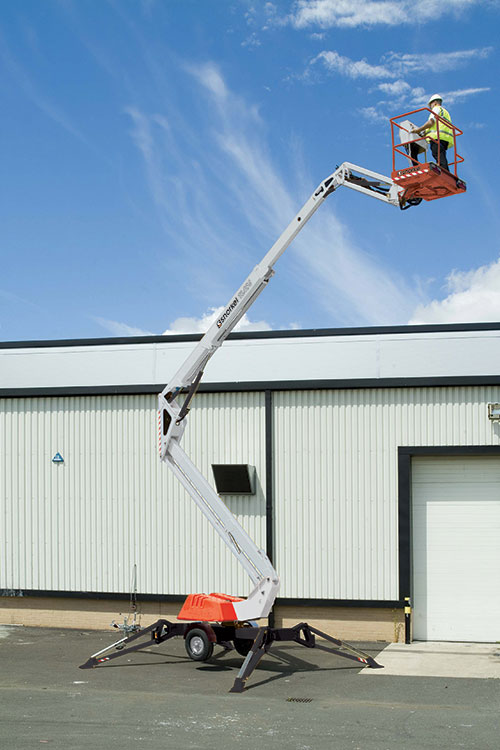

With an articulating/telescopic boom and jib, this the our most flexible trailer mounted boom lift designed to be incredibly robust and reliable. Bi-energy version available.

Standard Features

  • Hydraulic stabilizers
  • In-line boom design for maximum rigidity
  • Hand pump emergency lowering from platform
  • Lock valves on all hydraulic cylinders
  • Proportional live hydraulic controls
  • Integral road lighting board
  • Power line to platform
  • Dual lanyard attachment points
  • 2 year parts & labor, 5 year structural warranty
Max Working Height

16.7m

Max Platform Height

14.7m

Max Working Outreach

8.5m

Platform Width

1.14m

Platform Depth

0.7m

Outrigger Footprint

4.8m x 4.7m

Towing Width

1.72m

Towing Length

7.1m

Stowed Height

2.16m

Platform Capacity (SWL)

200kg

Max Wind Speed

12.5m/s

Jib Length

1.3m

Jib Arc

130º

Platform Rotation

90º

Turret Rotation

680º

Wheels

205/75R16

Controls

hydraulic proportional

Power Source

24V DC battery

Battery

4 x 6V 195Ah

Power Options

Bi-energy (combustion & battery); 230V mains or gasoline

Weight

2,389kg

Options

  • Special paint colors
  • Work lights in platform
  • Flashing amber light
  • Airline to platform
  • Nylon spreader pads (set of 4)
  • 110V/220V AC power
  • Gasoline power
  • Bi-energy (gas + batteries)
  • Environmental hydraulic oil
  • Friction drive assist package
  • Snorkel OnSite™ telematics

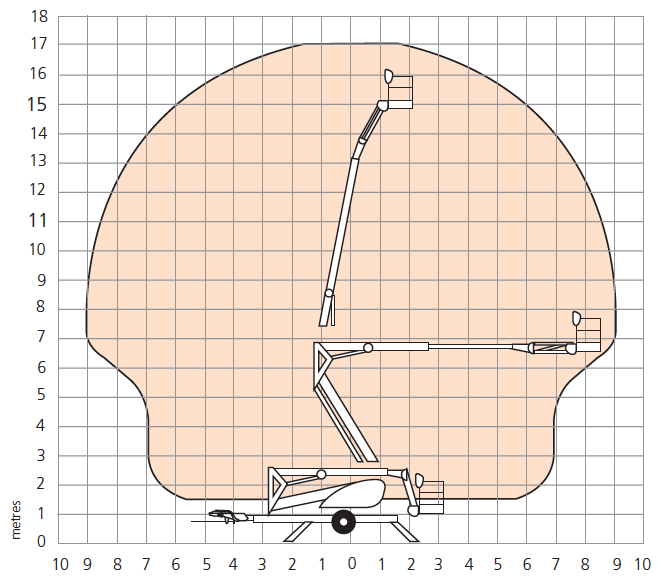

Working Envelope

TL49J-working-envelope

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Chile is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
