Standard Features

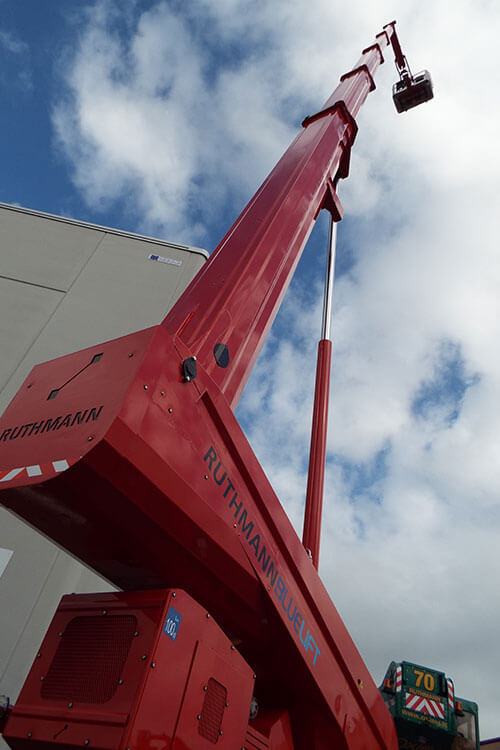

- Boom system of the RUTHMANN STEIGER® T 330 now on rubber-tracked chassis
- Proven STEIGER® technlogy from the premium segment
- 31 m working height and up to 18 m outreach
- 400 kg basket load
ST31
- Max. working height: 31 m
- Max. horizontal outreach: 18 m
- Basket capacity: 400 kg
- Overall weight: 4695 kg
| Max Working Height | 31 m |
|---|---|
| Max Horizontal Outreach | 18 m |
| Basket Capacity | 400 kg |
| Basket Dimension | 1,3 m x 0,7 m x 1,1 m |
| Turret Rotation | -220° / +220° |
| Overall Weight | 4695 kg |
| Max Gradeability | 18° / 33% |
| Combustion Engine | Diesel |
| Electric Motor | 230 V |
Options
- Standard basket: 1,300 x 700 x 1,100 mm
- Huge basket: 1,800 x 800 x 1,100 mm
Working Envelope
All Bluelift products are sold with a one year warranty on parts and labour and two years warranty on the electronics card.
For more information, contact your sales representative.
For more information, contact your sales representative.
Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
