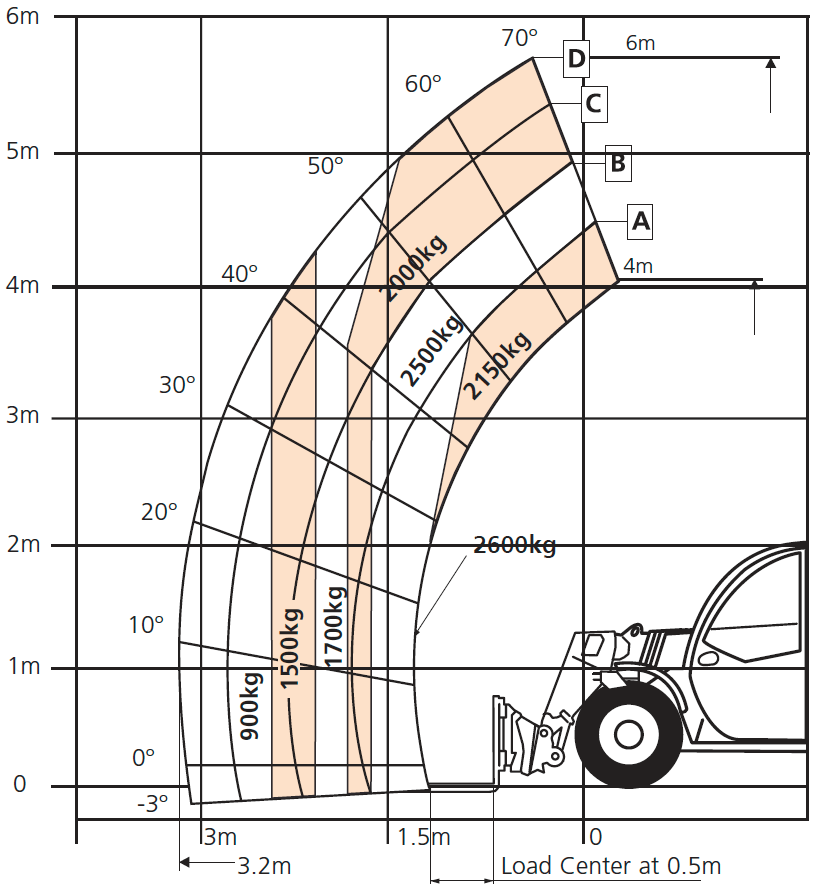

| Max. Lift Capacity | 2,600kg |
|---|---|
| Max. Lift Height | 5.79m |
| Max. Forward Reach | 3.2m |
| Overall Width | 1.89m |
| Stowed Height | 1.93m |
| Length to Fork Face | 4.19m |
| Wheelbase | 2.5m |
| Ground Clearance | 220mm |
| Max. drive speed | 27km/h |
| Raise/Lower Time | 6.9/5 sec |
| Hydraulic Flow (per min) | 70L |
| Hydraulic Pressure | 230bar |
| Hydraulic Oil Capacity | 70L |
| Fuel Capacity | 80L |
| Outside Turning Radius | 3.25m |
| Tires | 12 x 16.5 |
| Power Source | Yanmar 52kW Stage V diesel |
| Weight | 4,700kg |
All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.
To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.
Ahern Chile is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.
Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
