SR1065

Max. lift height: 9.5m
Max. lift capacity: 6,500kg
Max. forward reach: 5.4m
Weight: 11,090kg

Features
Specs
Options
Load Chart
Warranty

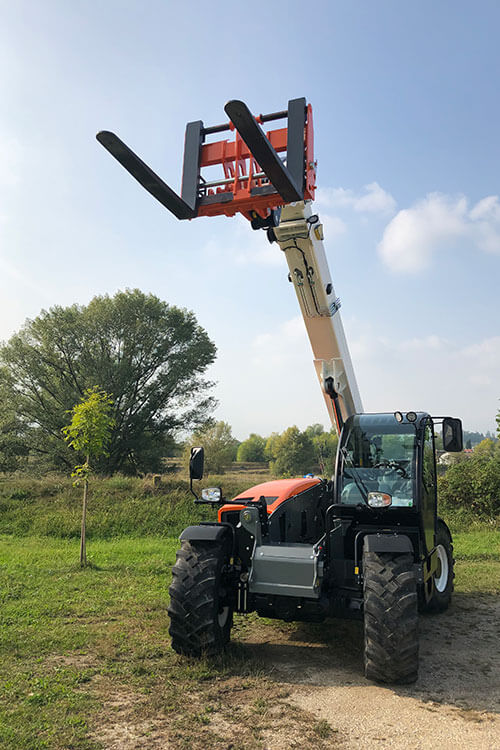

The Snorkel SR1065 rough terrain telehandler offers robust reliability. A high lift capacity maximizes performance, and a compact design makes it manoeuvrable on the jobsite. Equipped with 4-wheel drive, power assisted steering and a frame leveling system, this telehandler delivers power and precision with great handling capacities.

Standard Features

Full-time 4-wheel drive
4-wheel steer – selectable front, crab & coordinated steering modes
Auxiliary hydraulic circuit on the boom
Variable speed hydrostatic drive
Fender (4)
Fully enclosed cab with heat
Proportional joystick controls
Adjustable steering column
Illuminated gauge and switch panels
Colour LCD display with machine & engine diagnostics
Adjustable suspension seat
Flashing beacon
Fixed 1500mm carriage & 1500mm floating forks
2 year parts & labour, 5 year structural warranty

Max. Lift Capacity	6,500kg
Max. Lift Height	9.5m
Max. Forward Reach	5.4m
Overall Width	2.3m
Stowed Height	2.5m
Length to Fork Face	6.45m
Wheelbase	2.9m
Ground Clearance	410mm
Max. drive speed	40 km/h
Raise/Lower Time	20/14sec
Frame leveling	10°
Hydraulic Flow (per min)	100L
Hydraulic Pressure	230bar
Hydraulic Oil Capacity	150L
Fuel Capacity	120L
Outside Turning Radius	4.5m
Tires	445/65 R22.5"
Power Source	Deutz TCD 74.5kW Stage V / Tier 4 Final diesel
Weight	11,090kg

Options

Special paint colours
Air conditioning
Grammer air suspension seat
Front & rear LED work lights (4)
Work lights on boom (2)
Heated right external mirror
Additional rear mirror
Cab front glass protection grille
Engine preheater 220V
Boom suspension & floating boom
Bluetooth radio, handsfree & USB socket
Sun curtain
Fixed tow hook 6 ton
Snorkel OnSite™ telematics

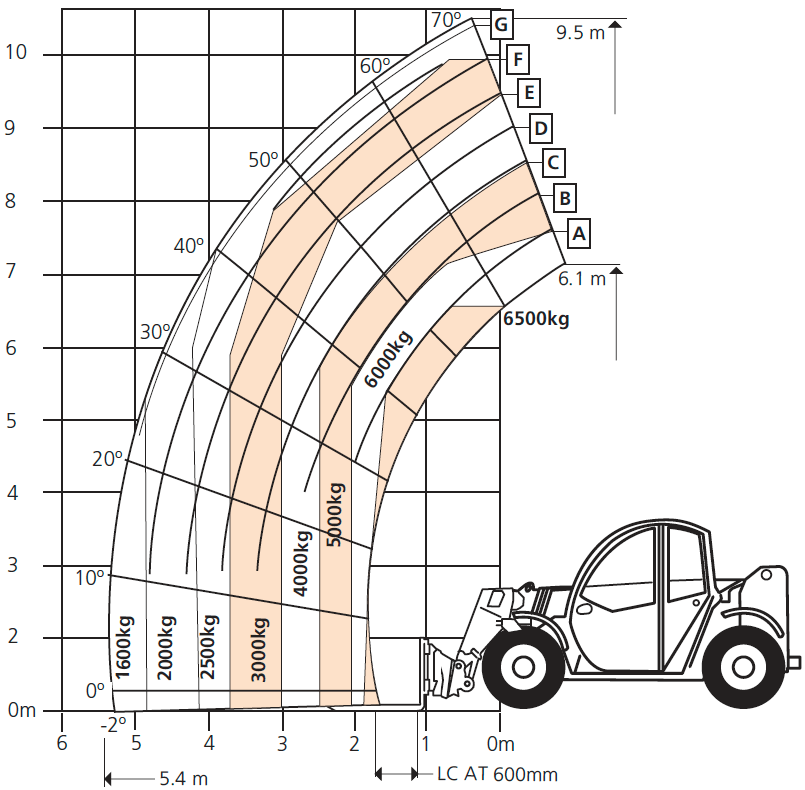

Load Chart

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Chile is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
