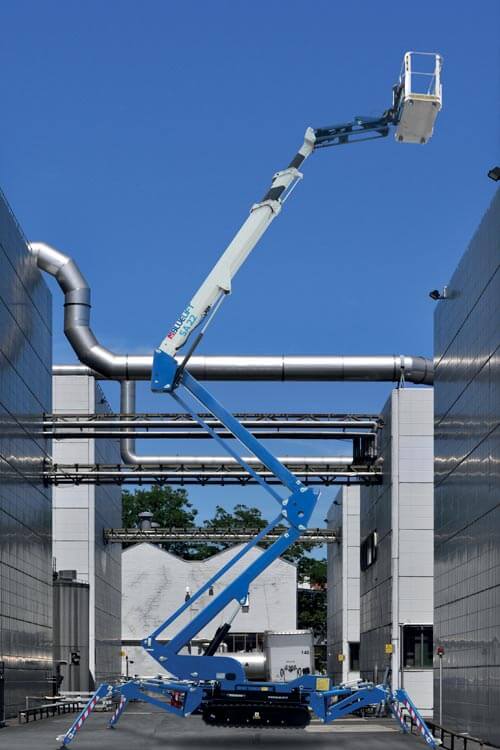

SA22

Max. working height: 22 m
Max. Horizontal Outreach: 10.9 m | 9.9 m
Basket capacity: 250 kg
Overall weight: 2990 kg

Download Specifications (PDF)

EQUIPMENT STANDARD

  • Quickly removable aluminum basket
  • Basket rotation
  • i-Performing electric pump (patented) with auto Start/Stop system
  • 230V power outlet in basket
  • Radio remote control with interactive and multi-lingual display
  • Track width adjusting system with independent axle
  • Multi-area stabilizer setting (3 different set-up positions)
  • Moment limiting device
  • Automatic center position of turret
  • Self Stabilizing system
  • Automatic START & STOP of engines and RPM control
  • Proportional and simultaneous electro-hydraulic controls
  • Proportional track drive with hydraulic breaking system
  • Double drive speed system with safety control.
  • Driving lateral slope alarm with safety stop
  • Driving possible with jib boom raised (with selector)
  • Interblock outriggers/booms
  • Emergency push-button with engine stop
  • Simple emergency lowering procedure
  • Hand pump for the emergency lowering of platform
  • Covers on outrigger cylinder’s piston rod, oil tank and emergency controls
  • Modem connection plug for diagnosis/software upgrading in remote
  • Produced according to EN280 norm and international safety regulation
Max Working Height

22 m

Max Horizontal Outreach

10.9 m/200 kg, 9.9 m/250 kg

Basket Capacity

250 kg

Basket Dimension

1.3m x 0.7m x 1.1m

Turret Rotation

340°

Overall Weight

2990 kg

Travel Speed

1.5 km/h

Max Gradeability

28%

Combustion Engine

Honda iGX

Electric Motor

230V – 2.2kW

Options

  • Air/Water tube
  • Diesel engine HATZ 1B40 with automatic RPM control and Automatic START & STOP
  • 110V power
  • Blue Lithium pack*
  • Blue Hybrid pack*
  • Asymmetric stability area
  • Upper boom working angle – 20°
  • No-marking crawlers
  • Custom paint work
* This option increase the overall weight of platform

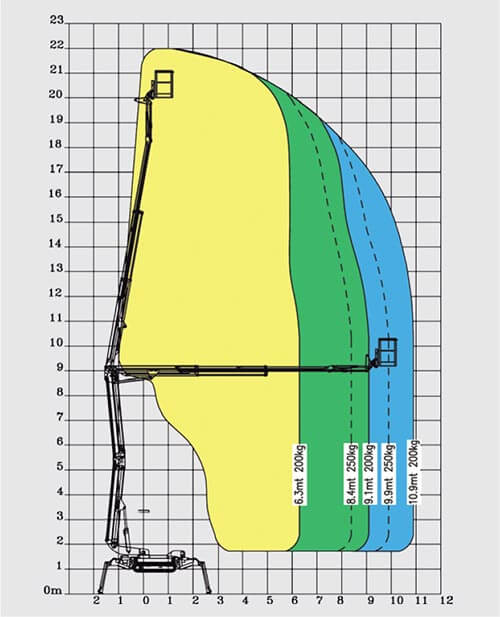

Working Envelope

SA22-working-envelope

Videos

Bluelift SA22

Optional Blue Lithium Package

All Bluelift products are sold with a one year warranty on parts and labour and two years warranty on the electronics card.

For more information, contact your sales representative.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
