S3220E

  • Max. working height: 8.1m
  • Platform capacity (SWL): 409kg
  • Stowed Height: 2.17m
  • Weight: 2,045kg

Download Specifications (PDF)

The Snorkel S3220E is a brand new 8.1m electric scissor lift from Snorkel which is designed for the rental industry. Built to withstand the toughest conditions, the S3220E also boasts a number of innovative features to improve the operator experience and reduce maintenance time, along with a substantial 409kg lift capacity.

Standard Features

  • Roll-out deck extension with dual locks
  • Non-marking tires
  • Swing-out service trays
  • Saloon-door style entry gates
  • Descent alarm
  • All motion alarm
  • Proportional controls, including descent
  • 2 persons indoor
  • 1 person outdoor
  • Loading pendant
  • Power line to platform
  • Platform overload system
  • Hour meter & on-board diagnostics display
  • Flashing amber light
  • Integrated battery charger
  • Battery condition indicator
  • Crane & forklift points
  • Dual lanyard attachment points
  • Scissor stack roller slide plates (set of 2)
  • 2 year parts & labor, 5 year structural warranty
Max Working Height

8.1m

Max Platform Height

6.1m

Platform Size (stowed)

0.71m x 2.14m

Platform Size (extended)

0.72m x 2.6m

Extension Deck Length

0.91m

Overall Length (with step)

2.3m

Overall Length (without step)

2.26m

Overall Width

0.81m

Stowed Height

2.17m

Min Height (guardrails folded)

1.72m

Ground Clearance (stowed)

66mm

Ground Clearance (elevated)

19mm

Platform Capacity (SWL)

409kg

Max Drive Height

6.1m

Max Wind Speed

12.5m/s

Max Drive Speed (stowed)

3.2 km/h

Max Drive Speed (elevated)

0.6 km/h

Raise/Lower Time

34 / 43 sec

Gradeability

25%

Inside Turning Radius

0.76m

Outside Turning Radius

2.36m

Tyres

15 x 4 non-marking rubber

Controls

proportional

Drive System

2 wheel drive

Power Source

24V DC battery electric

Charger

90 – 240V, 25amp

Weight

2,045kg

Options

  • Special paint colors
  • 110V AC 800W inverter
  • Airline to platform
  • Aircraft bumpguard package
  • Environmental hydraulic oil
  • Snorkel Guard™ secondary guarding system
  • Snorkel OnSite™ telematics
  • Panel carrier
  • Top rail

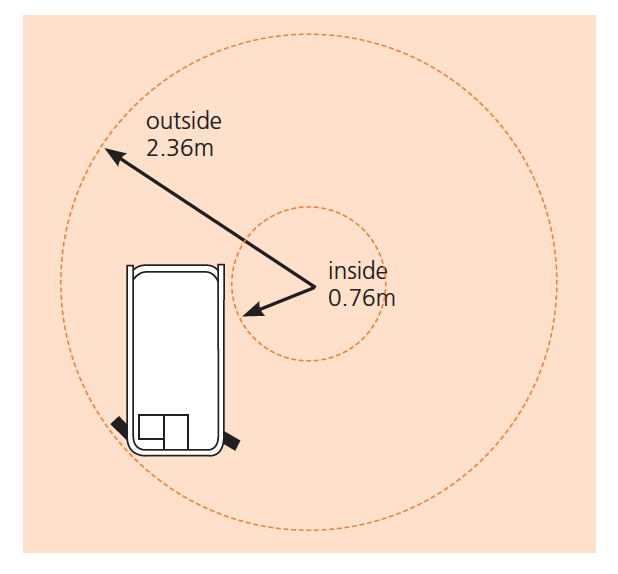

Turning Radius

S3220E S3226E turning radius

Video

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Chile is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
