S3215E

  • Max. working height: 6.6m
  • Platform capacity (SWL): 272kg
  • Stowed Height: 2.02m
  • Weight: 1,227kg

Download Specifications (PDF)

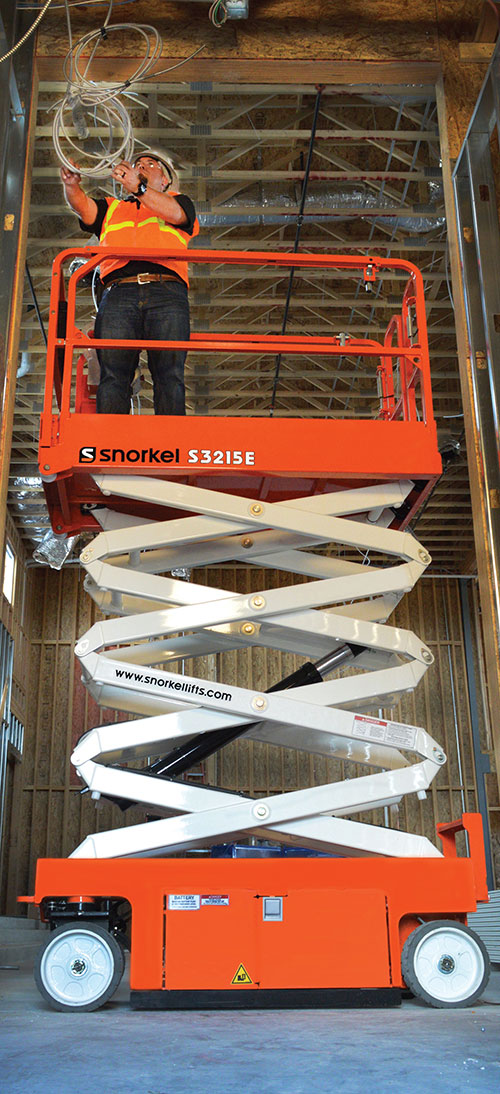

Built to handle the demands of the rental industry and the toughest job sites, this new Snorkel electric scissor lift is designed with a focus on low total ownership costs. Reliable, robust and simple lifts packed with innovative features designed to reduce downtime.

Standard Features

  • Roll-out deck extension with dual locks
  • Non-marking tires
  • Swing-out service trays
  • Saloon-door style entry gates
  • Descent alarm
  • All motion alarm
  • 2 persons indoors
  • 1 person outdoors
  • Proportional controls, including descent
  • Power line to platform
  • Loading pendant
  • Platform overload system
  • Flashing amber light
  • Hour meter & on-board diagnostics display
  • Integrated battery charger
  • Battery condition indicator
  • Crane & forklift points
  • Dual lanyard attachment points
  • Scissor stack roller slide plates (set of 2)
  • 2 year parts & labor, 5 year structural warranty
Max Working Height

6.6m

Max Platform Height

4.6m

Platform Size (stowed)

0.72m x 1.62m

Platform Size (extended)

0.72m x 2.53m

Extension Deck Length

0.91m

Overall Length (with step)

1.78m

Overall Length (without step)

1.73m

Overall Width

0.81m

Stowed Height

2.02m

Ground Clearance (stowed)

66mm

Ground Clearance (elevated)

19mm

Platform Capacity (SWL)

273kg

Max Drive Height

4.6m

Max Wind Speed

12.5m/s

Max Drive Speed (stowed)

3.2 km/h

Max Drive Speed (elevated)

0.6 km/h

Raise/Lower Time

20 / 36 sec

Gradeability

25%

Inside Turning Radius

0.1m

Outside Turning Radius

1.63m

Tyres

12 x 4 non-marking rubber

Controls

proportional

Drive System

2 wheel drive

Power Source

24V DC battery electric

Charger

90 – 240V, 25amp

Weight

1,307kg

Options

  • Special paint colors
  • 110V AC 800W inverter
  • Airline to platform
  • Aircraft bumpguard package
  • Environmental hydraulic oil
  • Snorkel Guard™ secondary guarding system
  • Snorkel OnSite™ telematics
  • Panel carrier
  • Pipe rack
  • Top rail

Turning Radius

S3215E/S3219E turning radius

Video

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Chile is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
