AB85J

  • Max. Working Height: 27.7m
  • Platform Capacity (SWL): 227kg
  • Stowed Height: 3.0m
  • Weight: 17,500kg

Download Specifications (PDF)

Snorkel GuardTM Brochure (PDF)

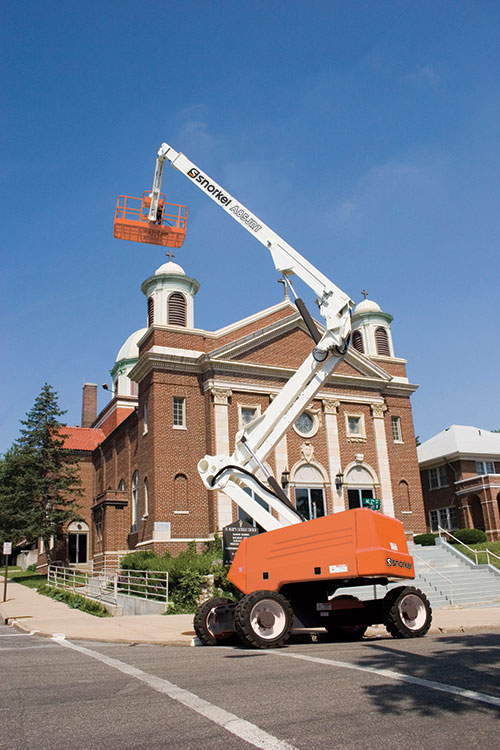

The Snorkel AB85J is the ultimate diesel articulated boom lift. Capable of lifting 227kg to a working height of 27.7m, the AB85J delivers excellent aerial maneuverability with ‘up and over’ capabilities and a jib boom with 140° side-to-side rotation. In addition, the AB85J has impressive rough terrain performance, boasting both 4 wheel drive and 4 wheel steer, including crab steer.

Standard Features

  • Snorkel Guard™ secondary guarding system
  • Hydraulic platform rotation
  • Four wheel drive, steer and crab steer
  • Foam filled lug tires
  • Proportional drive, lift & swing, extend & rotate
  • Drive motion alarm
  • Flashing amber light
  • Horn
  • Dual lanyard attachment points
  • Power line to platform
  • 3.5° tilt alarm
  • 2 year parts & labor, 5 year structural warranty
Max Working Height

27.7m

Max Platform Height

25.7m

Max Working Outreach

18.8m

Clearance Height at Max Outreach

8.5m

Platform Size

0.91m x 2.44m

Overall Width

2.6m

Overall Length

12.5m

Stowed Height

3.0m

Ground Clearance

330mm

Platform Capacity (SWL)

227kg

Max Drive Height

25.7m

Max Wind Speed

12.5m/s

Max Drive Speed (stowed)

4.8 km/h

Max Drive Speed (elevated)

1.0 km/h

Jib Length

2.0m

Jib Arc

135º (+70º/-65º)

Jib Rotation

140º side to side

Platform Rotation

150º

Raise/Lower Time

240/240 seconds

Tailswing

0.89m

Turret Rotation

360º

Gradeability

30%

Inside Turning Radius

2.4m

Outside Turning Radius

4.7m

Tyres

15 x 625 foam filled loader lug

Controls

proportional joystick

Drive System

4 wheel drive

Power Source

Kubota V2403 48kW/65hp diesel – Tier 4 Final

Weight

17,500kg

Options

  • Special paint colors
  • Airline to platform
  • Non-marking tires
  • AC generator 110V/240V 2kW
  • Aircraft package
  • Deluxe aircraft package
  • Cold weather package
  • Extreme cold weather package
  • Extreme environment package
  • Light package
  • Tow kit
  • Glazier package
  • Utility package
  • Pipe rack
  • 12kW generator package
  • 12kW generator/welder package
  • Dual fuel
  • Environmental hydraulic oil
  • Tool tray
  • Personal fall arrest system
  • Snorkel OnSite™ telematics

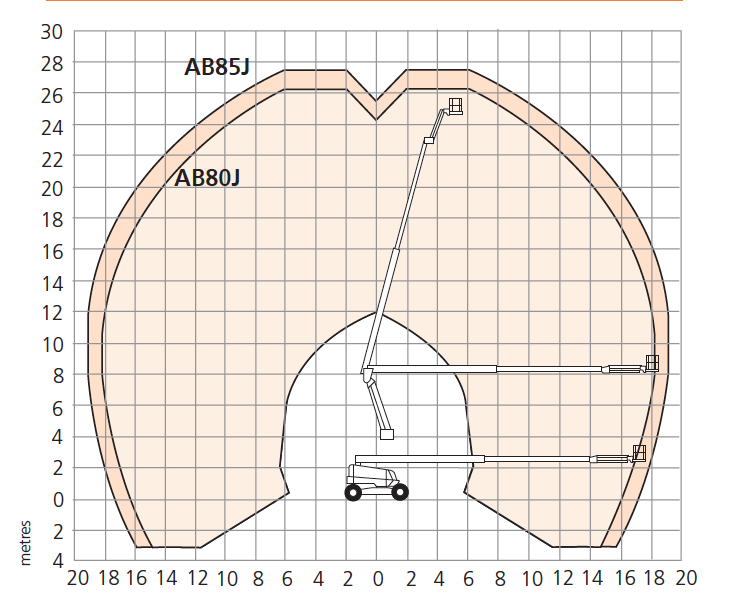

Working Envelope

Snorkel AB80J/AB85J Working Envelope

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Chile is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
