A38E

  • Max. working height: 13.5m
  • Platform capacity (SWL): 215kg
  • Stowed Height: 2.0m
  • Weight: 3,880kg

Download Specifications (PDF)

Snorkel GuardTM Brochure (PDF)

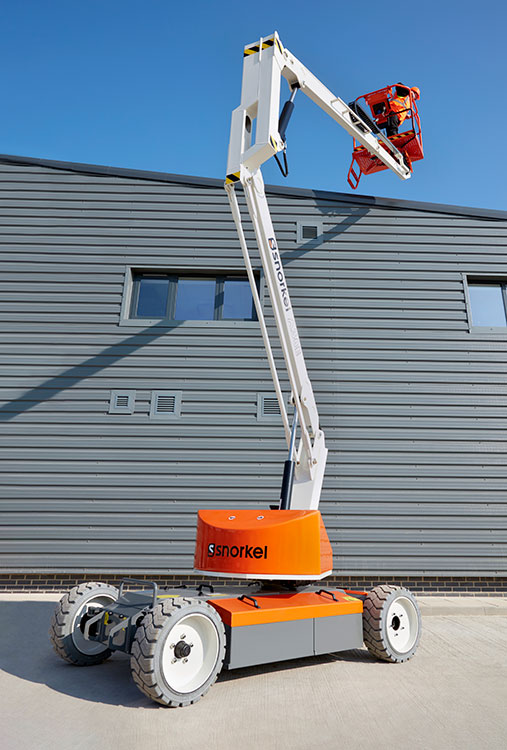

The class-leading Snorkel A38E is a lightweight, durable and reliable electric articled boom lift. Designed for internal and external use, this lift benefits from compact dimensions and an articulating/telescopic boom configuration for maximum maneuverability and versatility.

Standard Features

  • Snorkel Guard™ secondary guarding system
  • Proportional controls
  • Hydraulic platform rotation
  • Minimal front boom overhang
  • Ultra-tight inside turning radius
  • 3.5º tilt alarm
  • Direct DC drive
  • Non-marking tires
  • Platform overload system
  • Integrated battery charger 90-240V 25A 50/60Hz
  • Hour meter & on-board diagnostics display
  • Horn
  • Flashing amber light
  • Drive motion alarm
  • Power line to platform
  • 2 year parts & labor, 5 year structural warranty
Max Working Height

13.5m

Max Platform Height

11.5m

Max Working Outreach

6.1m

Clearance Height at Max Outreach

5.4m

Platform Size

0.69m x 1.11m

Overall Width

1.5m

Overall Length

4.1m

Stowed Height

2.0m

Ground Clearance

120mm

Platform Capacity (SWL)

215kg

Max Drive Height

11.5m

Max Wind Speed

12.5m/s

Max Drive Speed (stowed)

4.0m/h

Max Drive Speed (elevated)

0.5 km/h

Platform Rotation

90º (+45º/-45º)

Superstructure rotation

360º non continuous

Tailswing (elevated)

0m

Tailswing (stowed)

1.4m

Raise/Lower Time

83/68 sec

Gradeability

36%

Inside Turning Radius

1.12m

Outside Turning Radius

2.4m

Tyres

22 x 9 16 non-marking rubber

Controls

proportional

Drive System

direct drive DC

Power Source

8 x 6V, 220Ah batteries

Weight

3,880kg

Options

  • Special paint colors
  • Environmental hydraulic oil
  • Snorkel OnSite™ telematics

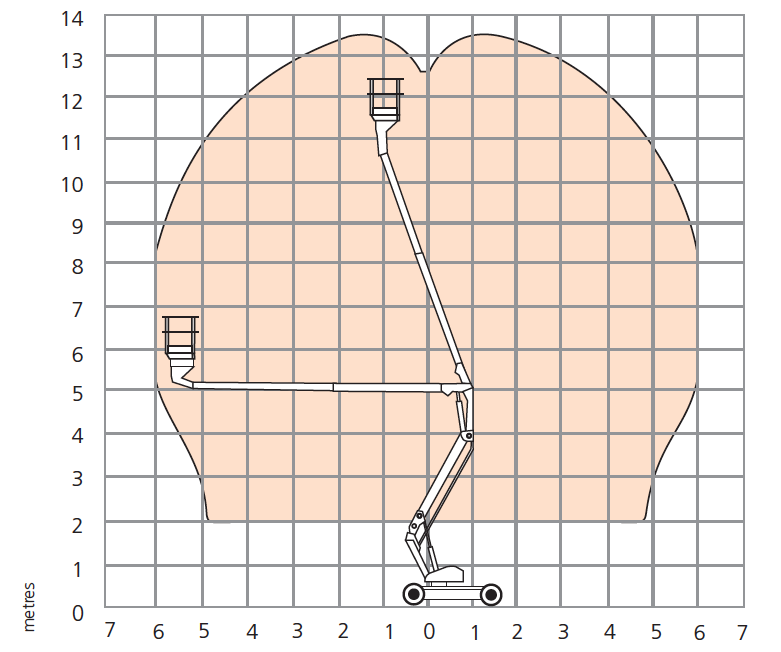

Working Envelope

A38E-working-envelope

Video

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Chile is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
