600S

  • Max. working height: 20.3m
  • Platform capacity (SWL): 272kg
  • Stowed Height: 2.51m
  • Weight: 11,176kg

Download Specifications (PDF)

Download Dual Envelope Lifting Capacities (PDF)

Snorkel GuardTM Brochure (PDF)

The Snorkel 600S is the largest of the new Snorkel diesel mid-size telescopic boom lift family, featuring powerful constant four wheel drive and a fixed axle for excellent rough terrain performance. Equipped with Snorkel’s new removable tri-entry platform designed for fast replacement, this all-steel lift features Snorkel Guard™ secondary guarding system as standard. Ideal for construction and industrial applications.

Standard Features

  • Snorkel Guard™ secondary guarding system
  • Oscillating axle (203mm of oscillation))
  • Hydraulic platform rotation
  • Hydraulic oil cooler
  • Four wheel drive
  • All proportional controls
  • Swing-out engine tray
  • Hour meter & on-board diagnostics display
  • Power line to platform
  • 5° tilt alarm & cut out
  • Tilt alarm & cut out
  • DC emergency operation
  • Tri-entry platform
  • Flashing amber light
  • Platform overload system
  • 2 year parts & labor, 5 year structural warranty
Max Working Height

20.3m

Max Platform Height

18.3m

Max Horizontal Outreach

16.0m

Platform Size

2.44m x 0.91m

Transport width

2.24m

Overall Width

2.46m

Transport Length

9.2m

Overall Length

9.2m

Transport Height

2.51m

Stowed Height

2.51m

Ground Clearance

340mm

Platform capacity - unrestricted

272kg

Platform capacity - restricted

454kg

Max Drive Height

18.3m

Max Wind Speed

12.5m/s

Max Drive Speed (stowed)

5.6 km/h

Max Drive Speed (elevated)

0.96 km/h

Jib Length

n/a

Jib Arc

n/a

Platform Rotation

150º

Superstructure Rotation (continuous)

360º

Raise/Lower Time

50/50 seconds

Tailswing

1.2m

Gradeability

45%

Inside Turning Radius

3.06m

Outside Turning Radius

5.21m

Tyres

355/55 D625 foam filled lug

Controls

proportional drive, raise, slew, extend, jib and platform rotate

Drive System

4 wheel drive

Power Source

Cummins 65hp (47.8kW) turbo diesel, Deutz T4F, stage V

Auxillary Power Unit

12V DC

Weight

11,176kg

Options

  • Special paint colors
  • Airline to platform
  • AC generator 110V/2.5kW
  • Non-marking tires
  • Dual fuel
  • Aircraft package
  • Deluxe aircraft package
  • Cold weather package
  • Extreme cold weather package
  • Extreme environment package
  • Tow kit
  • Glazier package
  • Light package
  • 10kW generator package
  • 10kW generator/welder package
  • Environmental hydraulic oil
  • Pressure washer package
  • Tool tray
  • Pipe rack
  • Snorkel OnSite™ telematics

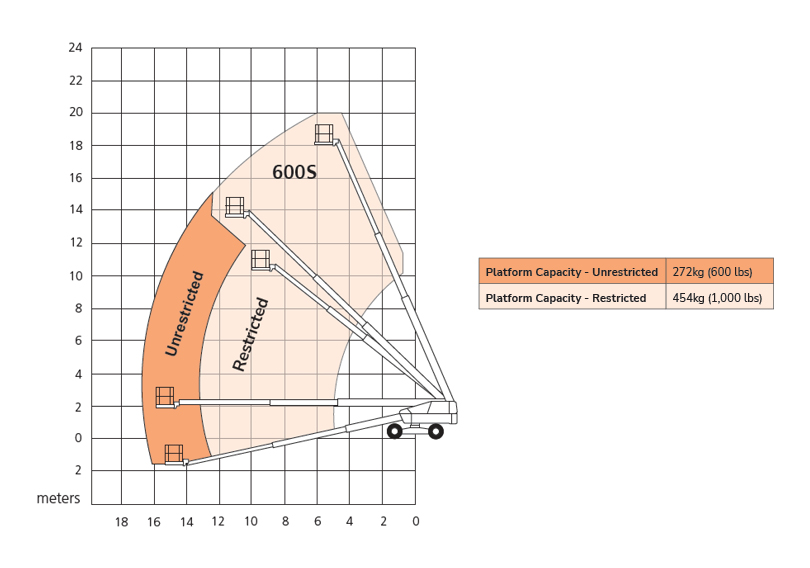

Working Envelope

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Chile is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
